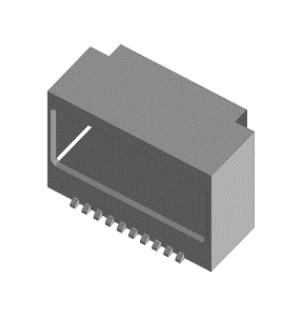

NOTE:MATERIAL &FINISH
1.HOUSING:HIGH TEMP THERMOPLST PLASTIC UL94V-0
COLOR:NATURAL&BLACK
2.CONTACT:COPPER ALLOY
3.FITTING NAIL:COPPER ALLOY ,PLATING:TIN
4.PACKING:REEL
5.PLATING
Contact Area:
1:GOLD FLASH
2:Au 5u'~10u'
3:Au 10u'~15u'
4:Au 15u'up
5:Tin Plated
6:Matte Tin 100~160u'
7:Au 3u'(MIN)
50u'~100u’NICKEL UNDER PLATED.
Solder Area:
GOLD FLASH
50u'~100u'NICKEL UNDER PLATED.
Fitting Nail:
Matte Tin 100~160u'
50u'~100u'NICKEL UNDER PLATED.
| PIN | A | B | C |  D | PIN | A | B | C | D |
| 08 | 1.50 | 2.93 | 4.25 |  3.00 | 56 | 13.50 | 14.93 | 16.25 | 15.00 |
| 10 | 2.00 | 3.43 | 4.75 |  3.50 | 58 | 14.00 | 15.43 | 16.75 | 15.50 |
| 12 | 2.50 | 3.93 | 5.25 |  4.00 | 60 | 14.50 | 15.93 | 17.25 | 16.00 |
| 14 | 3.00 | 4.43 | 5.75 |  4.50 | 62 | 15.00 | 16.43 | 1775 | 16.50 |
| 16 | 3.50 | 4.93 | 6.25 |  5.00 | 64 | 15.50 | 16.93 | 18.25 | 17.00 |
| 18 | 4.00 | 5.43 | 6.75 |  5.50 | 66 | 16.00 | 17.43 | 18.75 | 17.50 |
| 20 | 4.50 | 5.93 | 7.25 |  6.00 | 68 | 16.50 | 17.93 | 19.25 | 18.00 |
| 22 | 5.00 | 6.4 | 7.75 |  6.50 | 70 | 17.00 | 18.43 | 19.75 | 18.50 |
| 24 | 5.50 | 6.93 | 8.25 |  7.00 | 72 | 17.50 | 18.93 | 20.25 | 19.00 |
| 26 | 6.00 | 7.43 | 8.75 |  7.50 | 74 | 18.00 | 19.43 | 20.75 | 19.50 |
| 28 | 6.50 | 7.93 | 9.25 |  8.00 | 76 | 18.50 | 19.93 | 21.25 | 20.00 |
| 30 | 7.00 | 8.43 | 9.75 |  8.50 | 78 | 19.00 | 20.43 | 21.75 | 20.50 |
| 32 | 7.50 | 8.93 | 10.25 |  9.00 | 80 | 19.50 | 20.93 | 22.25 | 21.00 |
| 34 | 8.00 | 9.43 | 10.75 |  9.50 | 82 | 20.00 | 21.43 | 22.75 | 21.50 |
| 36 | 8.50 | 9.93 | 11.25 |  10.00 | 84 | 20.50 | 21.93 | 23.25 | 22.00 |
| 38 | 9.00 | 10.43 | 11.75 |  10.50 | 86 | 21.00 | 22.43 | 23.75 | 22.50 |
| 40 | 9.50 | 10.93 | 12.25 |  11.00 | 88 | 21.50 | 22.93 | 24.25 | 23.00 |
| 42 | 10.00 | 11.43 | 12.75 |  11.50 | 90 | 22.00 | 23.43 | 24.75 | 23.50 |
| 44 | 10.50 | 11.93 | 13.25 |  12.00 | 92 | 22.50 | 23.93 | 25.25 | 24.00 |
| 46 | 11.00 | 12.43 | 13.75 |  12.50 | 94 | 23.00 | 24.43 | 25.75 | 24.50 |
| 48 | 11.50 | 12.93 | 14.25 |  13.00 | 96 | 23.50 | 24.93 | 26.25 | 25.00 |
| 50 | 12.00 | 13.43 | 14.75 |  13.50 | 98 | 24.00 | 25.43 | 26.75 | 25.50 |
| 52 | 12.50 | 13.93 | 15.25 |  14.00 | AO | 24.50 | 25.93 | 27.25 | 26.00 |
| 54 | 13.00 | 14.43 | 15.75 | 14.50 | CO | 29.50 | 30.93 | 32.25 | 31.00 |
